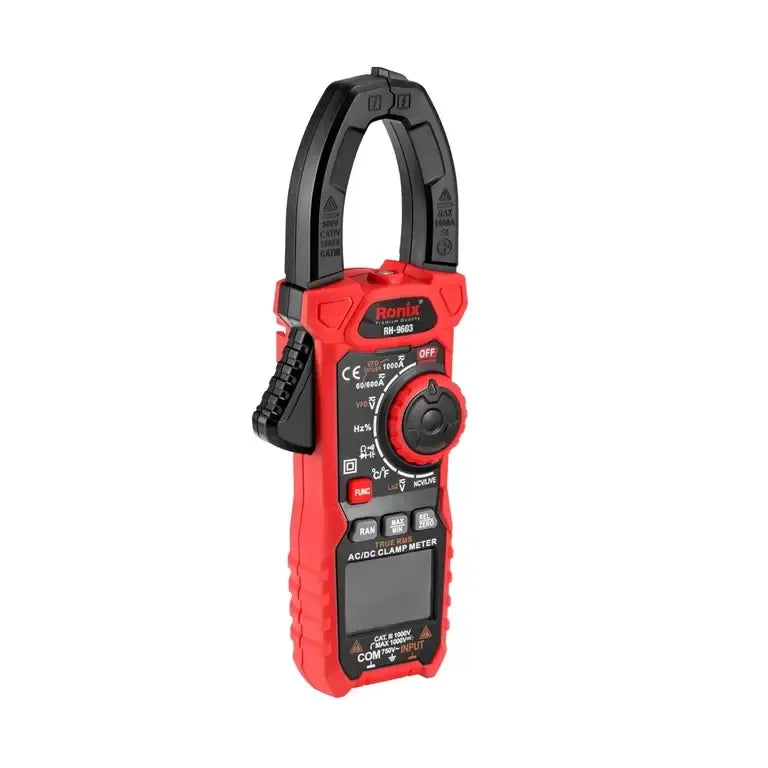

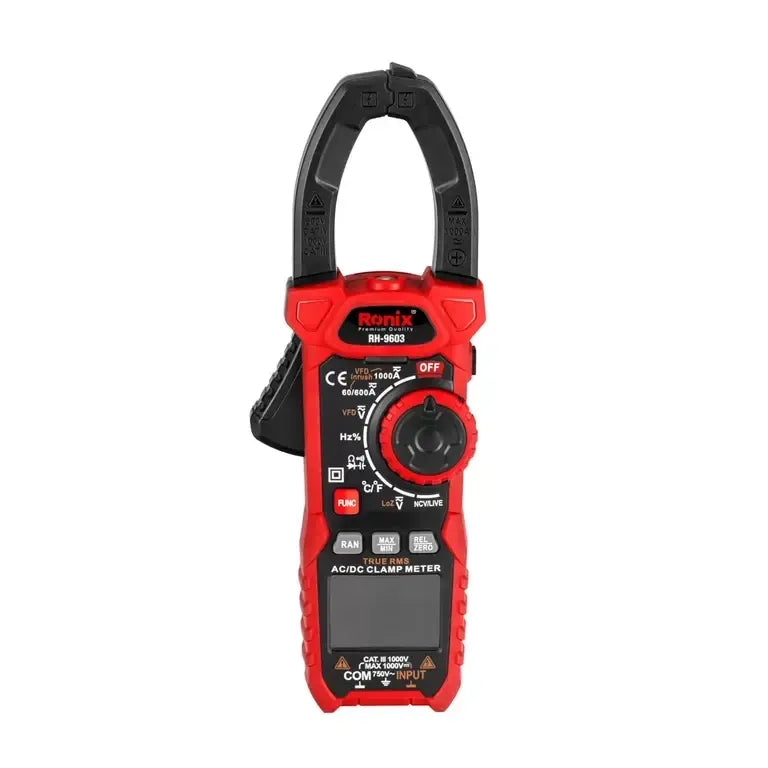

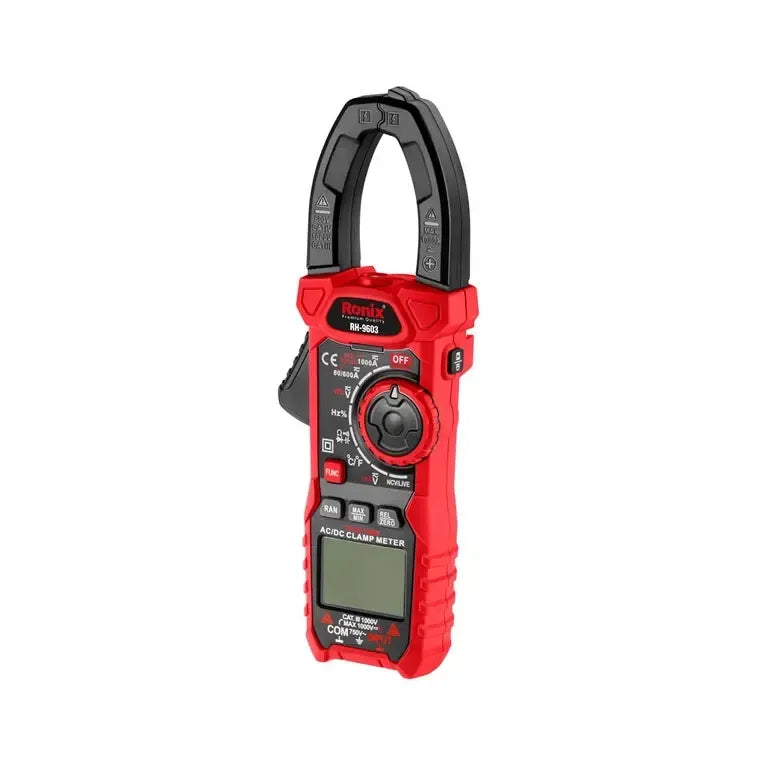

Clamping, digital multimeter, RONIX RH-9603
Clamping, digital multimeter, RONIX RH-9603
Regular price
€99,95 EUR
Regular price
Sale price
€99,95 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
About Delivery
About Delivery
We offer fast delivery within 1 to 2 days, with cash on delivery for your peace of mind. Guaranteed safe shopping experience.
Pick-up Address
Pick-up Address
100 Triq il-Wied Hal-Balzan, Ħal Balzan BZN 1020, Malta
WhatsApp :- +356 7795 0043
Contact us before you come!
Couldn't load pickup availability

- 2 Years Warranty
- Free Returns
- Free Delivery
Share
Product Details
Brand: RONIX
SKU: RH-9603
Weight: 0.32 kg

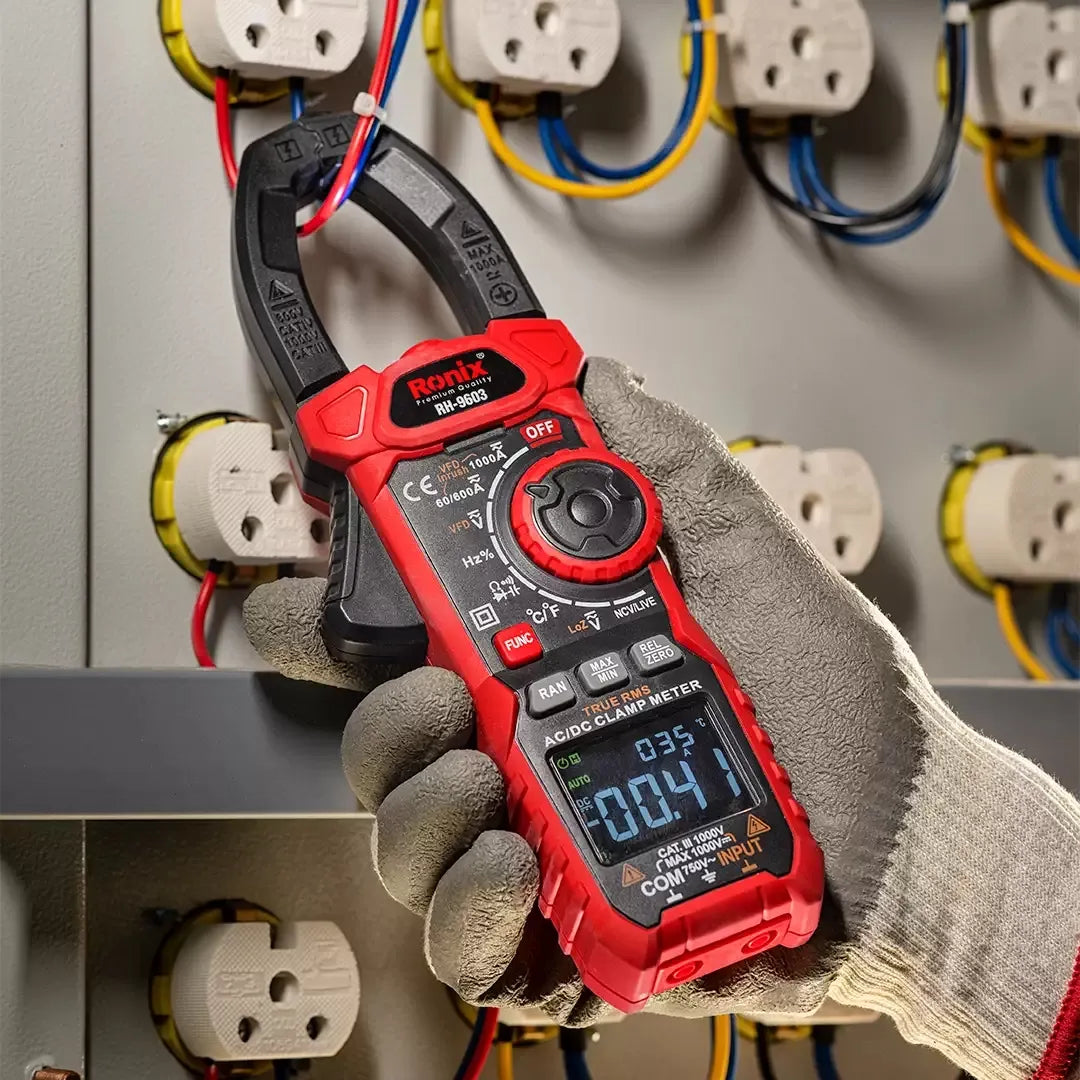

Clamping digital multimeters, also known as clamp meters, are versatile electrical testing devices that can measure current flow without the need for physical contact with the circuit. They work by clamping around a conductor, such as a wire, and detecting the magnetic field generated by the current passing through it.
This allows the meter to measure the current directly, providing accurate readings. Clamp meters are beneficial for electricians, technicians, and DIY enthusiasts who need to measure electrical current in a non-invasive manner.

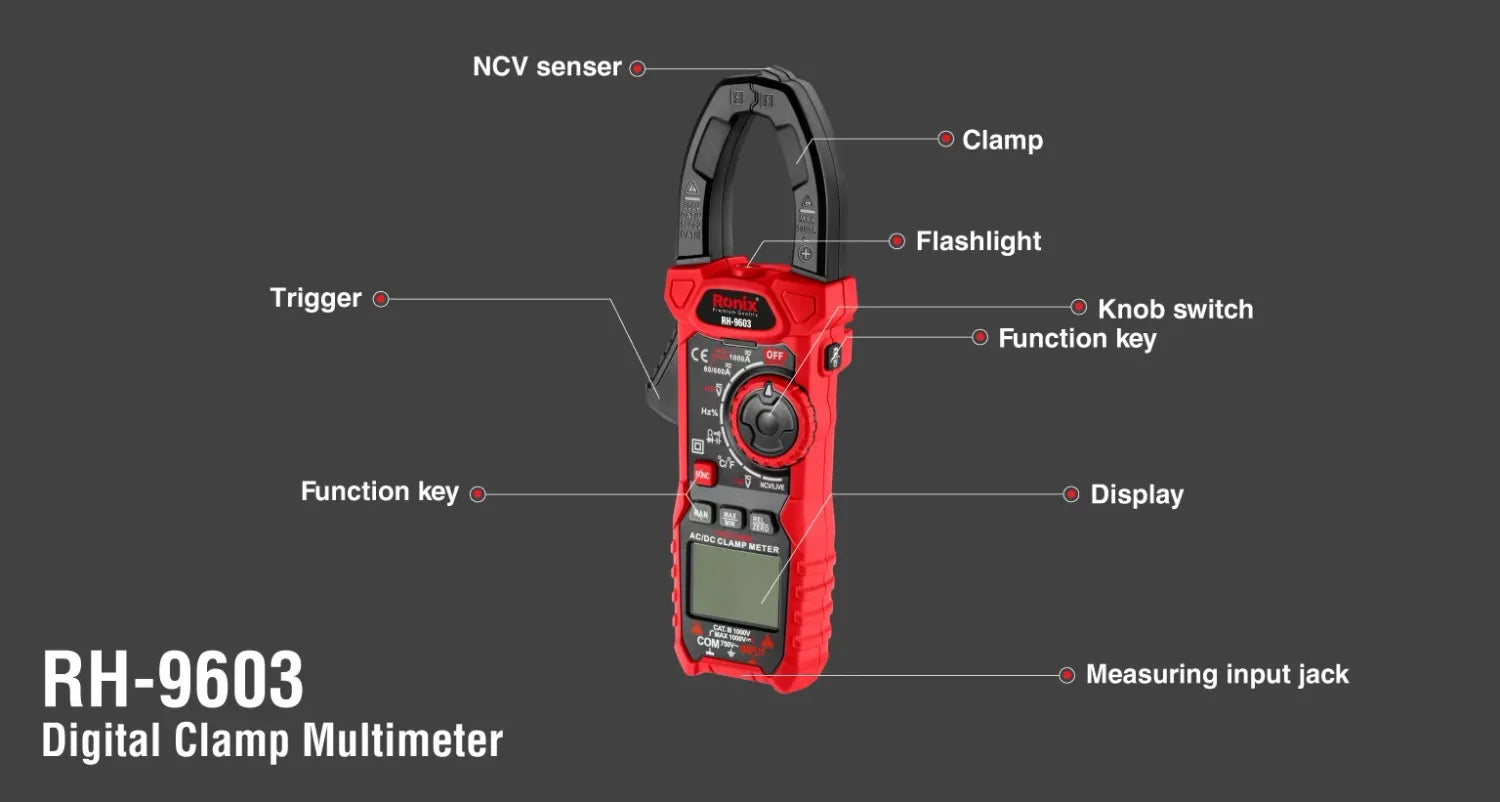

Ronix RH-9603 is a digital multimeter that offers all of the basic functionalities of a clamping multimeter while also offering other useful features such as a flashlight or true RMS capability.
If you are in the market for a new clamping digital multimeter, Ronix RH-9603 is one of the best options available that combines excellent performance with an affordable price.
Practical Digital Multimeter which can accurately measure the value of various parameters like AC/DC current, AC/DC voltage, frequency, resistance, continuity, diode, capacitance, temperature, non-contact AC voltage (NCV) detection, and live detection.
- Overload protection for all measurement range
- Low input impedance helps to prevent false readings due to ghost voltage

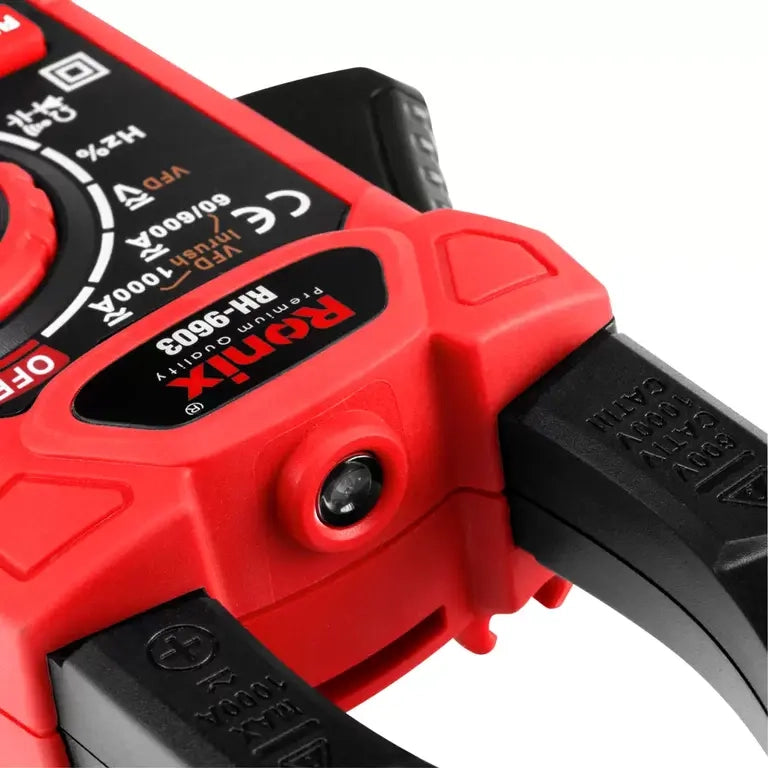

- The flashlight function bring comfort and safe work in dark spaces
- Provide with Non-contact AC Voltage detection function
- Achieving a high level of safety in a compact body and lightweight design
- Robust body design with shockproof protection
- Auto power off within 15 minutes if there is no operation, helps conserve the battery
- Designed and conforms to IEC 61010-1-2010 Standard, safe and reliable
Model | RH-9603 |
DC Voltage Range | 600mV/6V/60V/600V/1000V |
Accuracy Rang of DC Voltage | (0.8%+5)± |
AC Voltage Range | 600mV/6V/60V/600V/750V |
Accuracy Rang of AC Voltage | (1.0%+5)± |
DC Current Range | 60A/600A/1000A |
Accuracy Rang of DC Current | (2.5%+8)± |
AC Current Range | 60A/600A/1000A |
Accuracy Rang of AC Current | (2.5%+8)± |
Resistance Range | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
Accuracy Rang of Resistance | (1.0%+5)± |
Capacitance Range | 10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF |
Accuracy Rang of Capacitance | (5.0%+10)± |
Frequency Range | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
Accuracy Rang of Frequency | (3.0%+3)± |
Temperature Range | "-20°C~1000°C. '-4°F~1832°F" |
Accuracy Rang of Temperature | (2.0%+2)± |
Duty Cycle | "1%~99% (3.0%+3)±" |
Accuracy Rang Duty Cycle | (3.0%+3)± |
Counts | 6000 |
AC bandwidth | 1KHz |
input impedance | 10MΩ |
LCD Size | 43.6*32.5mm |
Sampling rate | Yes |
Auto/Manual range | Yes |
Continuity | Yes |
Diode Test | yes |
Data hold | Yes |
NCV | Yes |
Back light | Yes |
Flashlight | Yes |
DCA ZERO | Yes |
Low battery indication | Yes |
Auto Power Off | Yes |
True RMS | Yes |
shockproof protection | Yes |
Analog Bar Graph | Yes |
VFD | Yes |
INRUSH | Yes |
MAX/MIN | Yes |
REL | Yes |
LowZ | Yes |
V-LoZ | Yes |
VA screen | Yes |
Body Material | ABS |
Power | 3xAAA(1.5V)Batteries |
Weight | 320gr |
operating temperature range | 0~40°C |
size | 240*85*47mm |

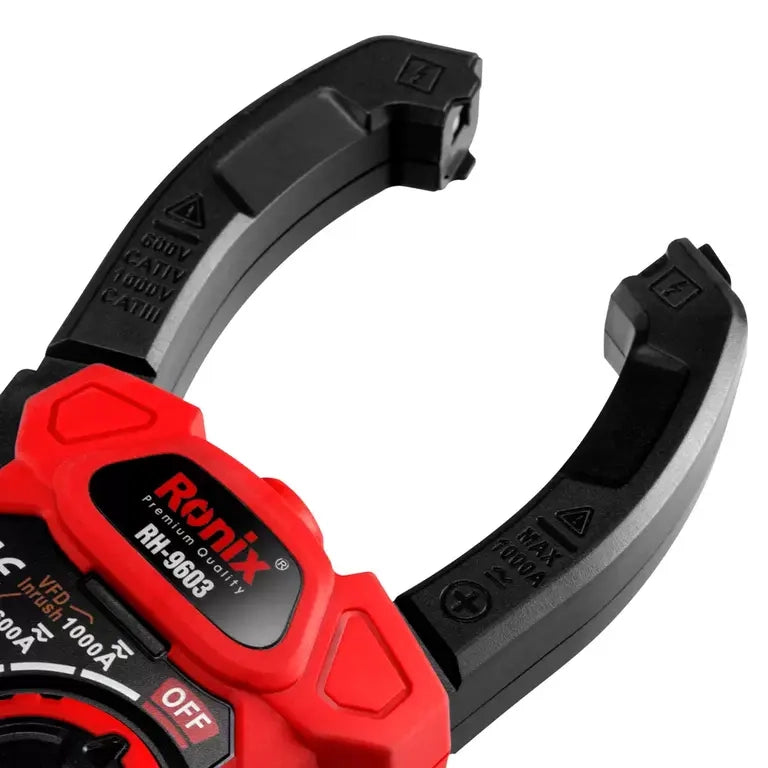

Jaw opening | 40mm |
Jaw Size | ø35*60mm |
Safety Rating | EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 1000V |
packaging | Color Carton |
Accessories | probe, EVA toolkit, manual |
