CCTV, 8 cameras, 5MP, IVR, DVR 1TB, 25MT cables, CAT6

Automatic Wireless Connection, plug and play

1080P H.265+ wireless network recorder and 8 1080P wireless cameras

In open space without interference transmission distance up to 800 meters

Insert professional surveillance Wireless board, with stonger anti-interfere ability

One-push to configure

Support alarm push motion detection and alarm output(voice/email/ FTP etc.)

Support Android/Apple cell phone or pad by LAN & WAN visit and control

P2P IP PRO, fluent and fast remote access

Suit to homes, offices, small businesses & retail stores

Easy to Install, User-Friendly Operation

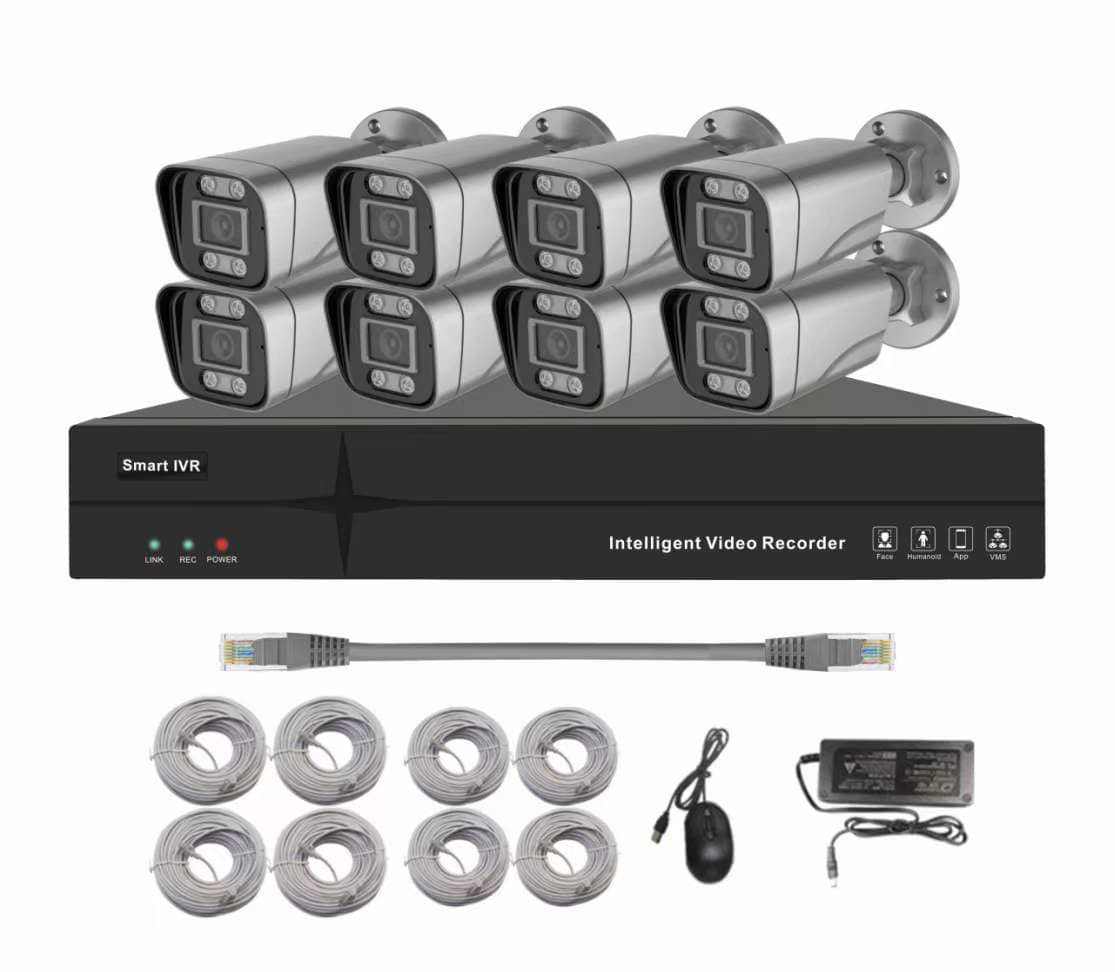

Inner Included:

1 x 8-Channel 4K NVR

8 x 5MP Bullet IP Cameras

8 x Power Supply (12V-1000mA) for Cameras

1 x Power Supply (12V-2000mA) for NVR

1 x 3.3 Feet Network Cable

1 x Mouse

1 x Screw Bag

1 x User Manual

IP Camera NVR Specification:

NVR 1x Support 8 CH 4K input and output 5MP NVR

Camera 8PCS x Bullet waterproof Camera 4 pcs dual light board, night vision 20M

Cable 8x 25m Cate5 Cable + 1 pcs 1.5M cable

Mouse 1xUSB 2.0 Mouse

Hard Disk 1TB

Adaptor DC52V/4.62A

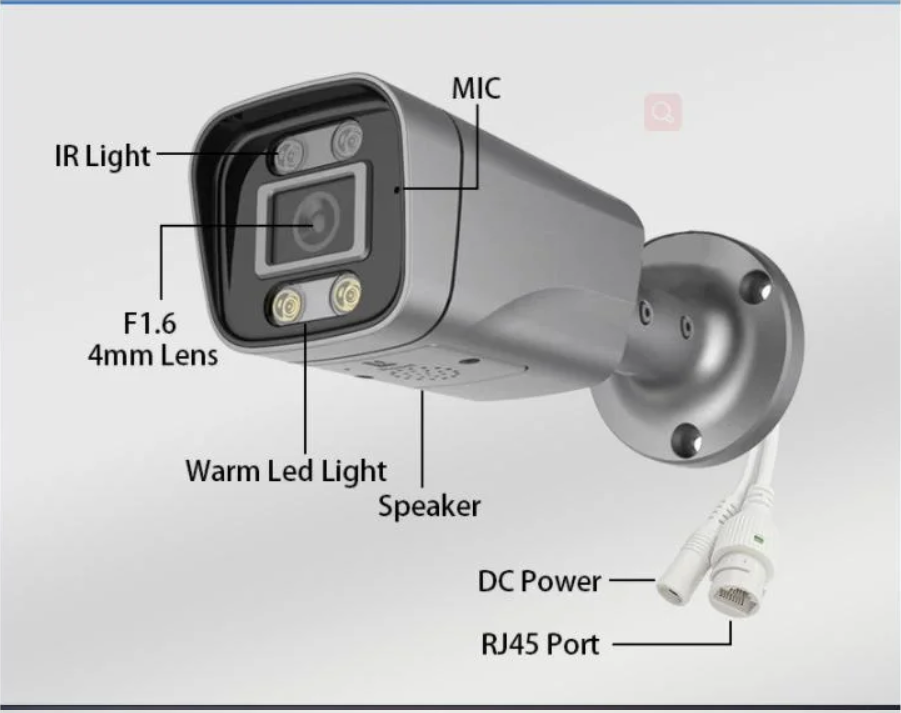

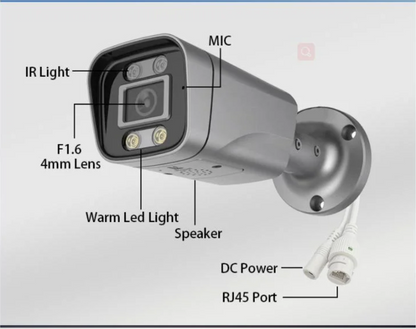

Camera 8PCS x Bullet waterproof Camera 4 pcs dual light board, night vision 20-30M

Image Sensor 1/2.9" Full HD CMOS Sensor

Resolution 5MP

Effective Pixels 2560(H)*1440(V)

Compression H.264/H.265

TV System PAL/NTSC

Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec

Minimun Illumination 0.01Lux

S/N Ratio ≥52dB

Video Output Network

Lens

Focus Length 3.6mm

Focus Control Fixed

Lens Type Fixed

Pixels 5MP

Night Vision

Infrared LED 6 PCS

Infrared Distance 20M

Network

Ethernet RJ-45 (10/100Base-T)

Protocol TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,UPNP,SMTP

ONVIF Support ONVIF 2.6(Profile S/T)

POE Yes, Support IEEE 802.3af

Video Delay 0.5 S (Within the Lan)

Main Stream 1 5MP 2592*1904@20fps

Sub Stream 1 D1(720*576),VGA(640*480),Q720P(640*360),CIF(352*288),QVGA(320*240)

IE Brower IE8-11

Smart Phone smart Phone, iPad, Android, Android Pad

Camera Features

Day/Night Color/ B&W (IR-CUT )

Image Config Saturation/Brightness/Contrast /Sharpness, Mirror, White Balance, FLK(Flicker Control)

Defog Mode Support

ROI Support 4 areas, can set multi-level

BLC YES

Human Detection Detect ≤5 human at the same time

Detection Area Support appointed area, full screen by default

Trigger Mode Video trigger

WDR D-WDR

Motion Detection Support

Privacy Masking 4 Rectangular area

Occlusion Alarm Support 1 area

Recording Mode NVR

Language English

General

Housing Metal , IP66

Operation Temperature -20ºC ~ +60ºC RH95% Max

Storage Temperature -20ºC ~ +60ºC RH95% Max

Power Supply DC12V±10%, 1AN, POE

Dimension φ66 x 176(L) mm

Weight 370g

Model System

Main Processor SSR621Q

Operating System Embedded LINUX

Video

Input Support 8 Channels IPC input

Output 1 VGA, 1 HDMI

Audio

Output 1 Port RCA(Linear, 1kΩ)

Audio Bit Rate 64kbps

Audio Compression standard G711u, G711a

Alarm

Human Detection 8CH

Motion Detection 8 Channel, MD Zones: 396 (22 × 18)

Trigger Events Recording, Email, FTP, Snapshot

Display

HD Output1 Resolution:4K (3840 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Display Split 16 CHxD1/9CH D1/8CHxD1/4CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k

Digital Zoom YES

OSD Camera Title, Time, Recording, Motion Detection, Event Alarm
